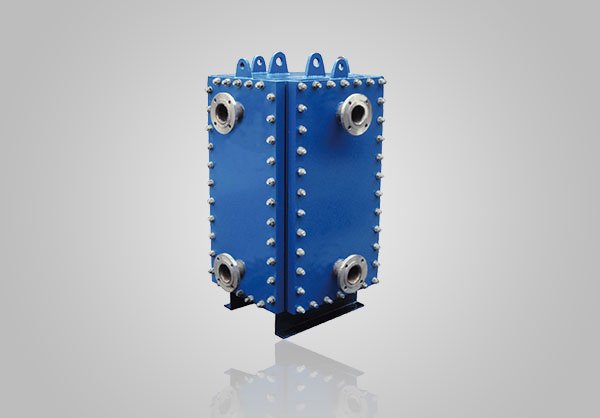

LS-BLOC Welded Plate Heat Exchanger

This product uses an all-welded plate pack inside a detachable hexahedral casing, so the equipment can be cleaned both mechanically and chemically. It retains the high heat transfer efficiency and compact structure of a traditional plate heat exchanger while allowing use at higher pressures and temperatures in petroleum, chemical, electric power, pharmaceutical, metallurgy, and refrigeration service.

Petrochemical
Chemical Processing
Pharmaceuticals
Power Generation
Get Quote

Key Advantages

Hexahedron detachable structure supports mechanical and chemical cleaning inside the equipment.
Keeps the high heat transfer efficiency and compact structure of a plate heat exchanger.
Suitable for higher pressure and temperature conditions than conventional detachable plate equipment.

Technical Specifications

Assembly Area≤2500㎡
Design PressureVacuum ~ 3.2MPa
Design Temperature-200 ~ 350℃
Minimum Temperature Difference2℃

Other Products From This Manufacturer

Back to Manufacturer Page

Quote readiness for this product

Prepare a request that is easier to follow up for LS-BLOC Welded Plate Heat Exchanger

For smoother quotation follow-up, share real operating conditions, quantity, standards, materials, and project timing.

Information that helps follow-up

  • Operating data:Media, flow, inlet/outlet temperatures, pressure, and heat load.

  • Mechanical limits:Material, design code, flange standard, pressure rating, and corrosion concerns.

  • Commercial context:Quantity, target delivery time, destination, and project stage.
